無錫市興百利機械設備有限公司

風選+振動篩+重力清洗機 Air shaker gravity cleaner

首先風選去除輕雜質、然后振動篩選去除大雜、小雜，最后重力清選去除重雜質。

特點：

1.適用于芝麻籽、豆類、小麥、玉米、谷物等。

2.一次性清除灰塵、糠秕、麥秸、傷籽、芽籽、霉變粒等輕雜質。

3.振動篩選、分級功能。

4.適用于雜質較多的糧食或種子。

優勢：

1.凈度≥ 98%

2.產量：30t/h

3、篩分率高：雙篩箱結構

4.雙風篩、雙旋風除塵器

5.環保、密閉結構、雙螺桿旋風分離器

6.能耗低

工作原理：

原料經空氣清潔過濾除塵、振動篩除大小雜質，進入重力清選，將受傷的種子、發芽種子、霉變的谷粒等重雜質除去，分離精度高。

First, the air cleaner removes light impurities, then the vibration screen removes large and small impurities, and finally the gravity cleaning removes heavy impurities.

Function

1. Suitable for sesame seeds, beans, wheat, corn, grain, etc.

2. Remove the light impurities such as dust, chaff, wheat straw, damaged seeds, sprouted seeds and moldy grains at one time.

3. Vibration screening and grading function.

4. Suitable for grains or seeds with more impurities.

Advantage

1. Purity ≥ 98%

2. Output: 30t/h

3. High screening rate: double screen box structure

4. Double air screen, double cyclone dust remover

5. Environmental protection, closed structure, twin-screw cyclone separator

6. low energy consumption

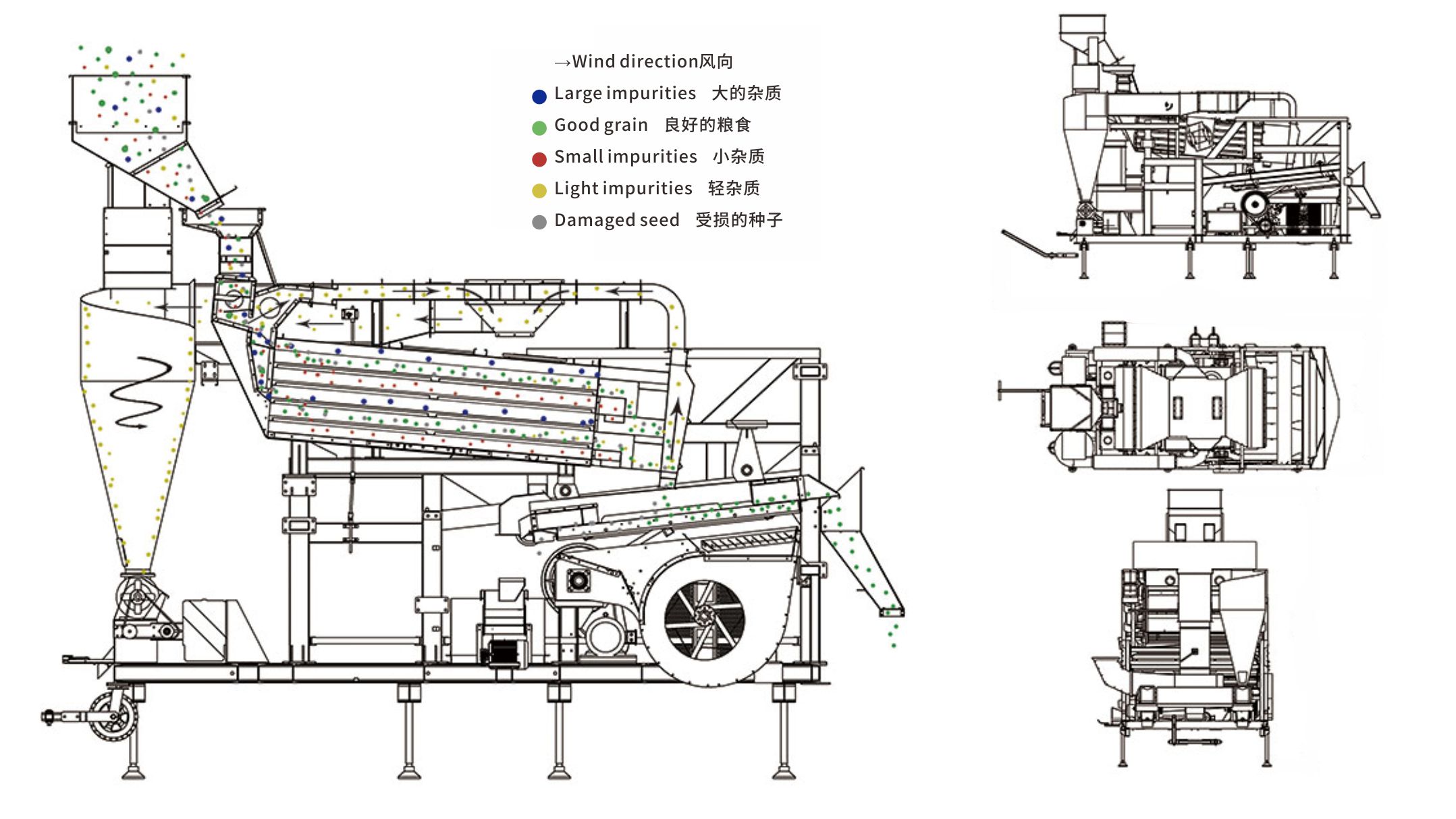

Working principle

The raw materials are cleaned, filtered and dedusted by air, and the impurities of large and small are removed by vibrating screen, and then enter into gravity cleaning, so as to remove the heavy impurities such as the injured seeds, germinated seeds and moldy grains, with high separation accuracy.
